PATTERNS
Blue Star pattern stock brings elegance and performance to your siding, soffit, paneling, ceiling, and porch. We make edge and center bead, reversible tongue and groove, and nickel gap patterns built to last, for many applications.
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS

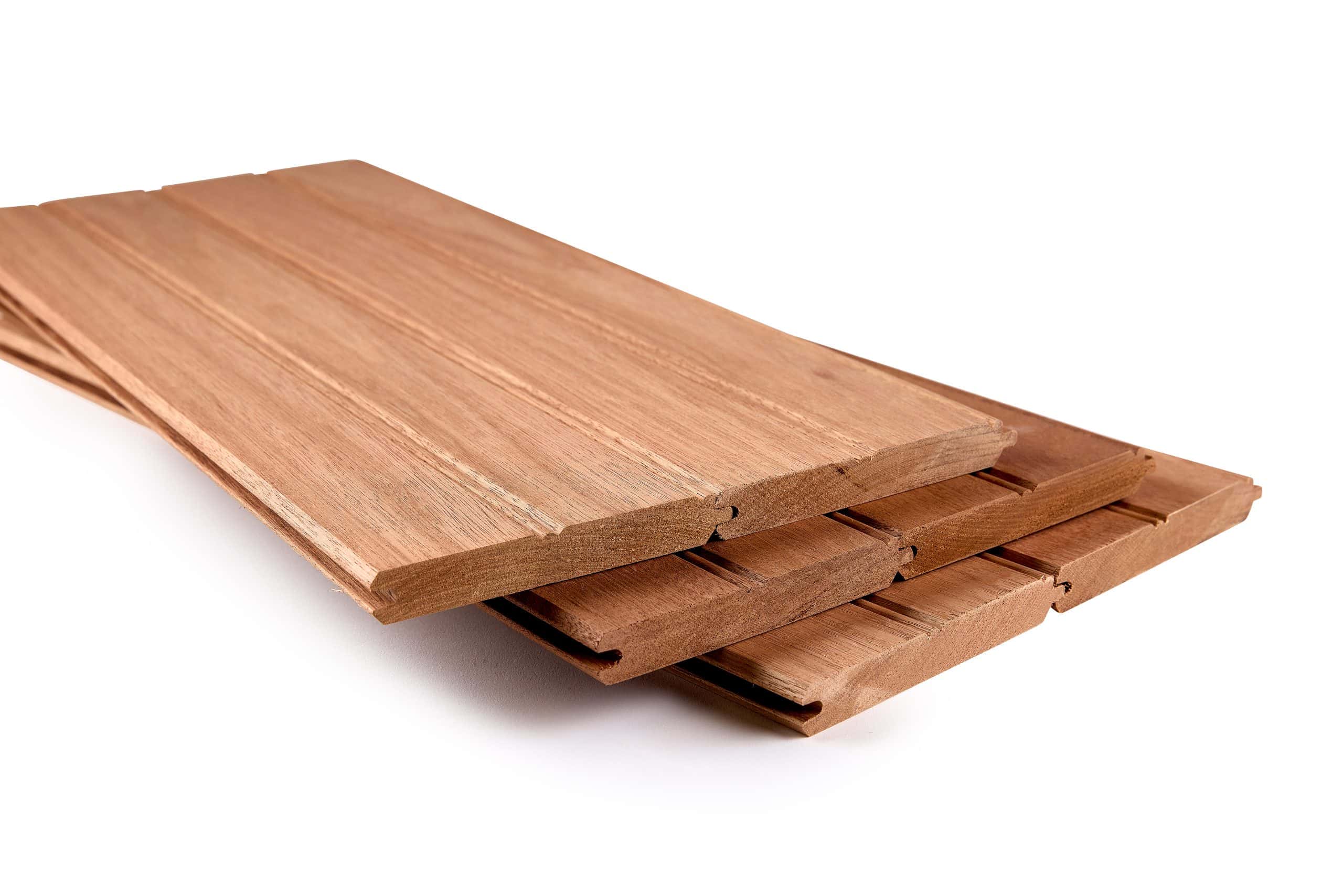

EDGE AND CENTER BEAD
MULTI-USE: paneling, siding, wainscot and ceiling.
PROFILE:
- 1x4 Reversible profile. One face has an edge bead and a center bead, with v-joint. The opposite face has an edge bead, and v-edges.
- 1x6 Reversible profile. One face has an edge bead and a center bead, with v-joint. The opposite face has v-edges (no edge, or center bead).
NOMINAL SIZE: 1x4, 1x6
NET SIZE: 9/16x3-5/16, 3/4x5-1/2
LENGTHS: 8'-20′, allowing maximum 7% 6/7' trimbacks, as develops. 12′ average length
MOISTURE CONTENT: Kiln dried to 12%

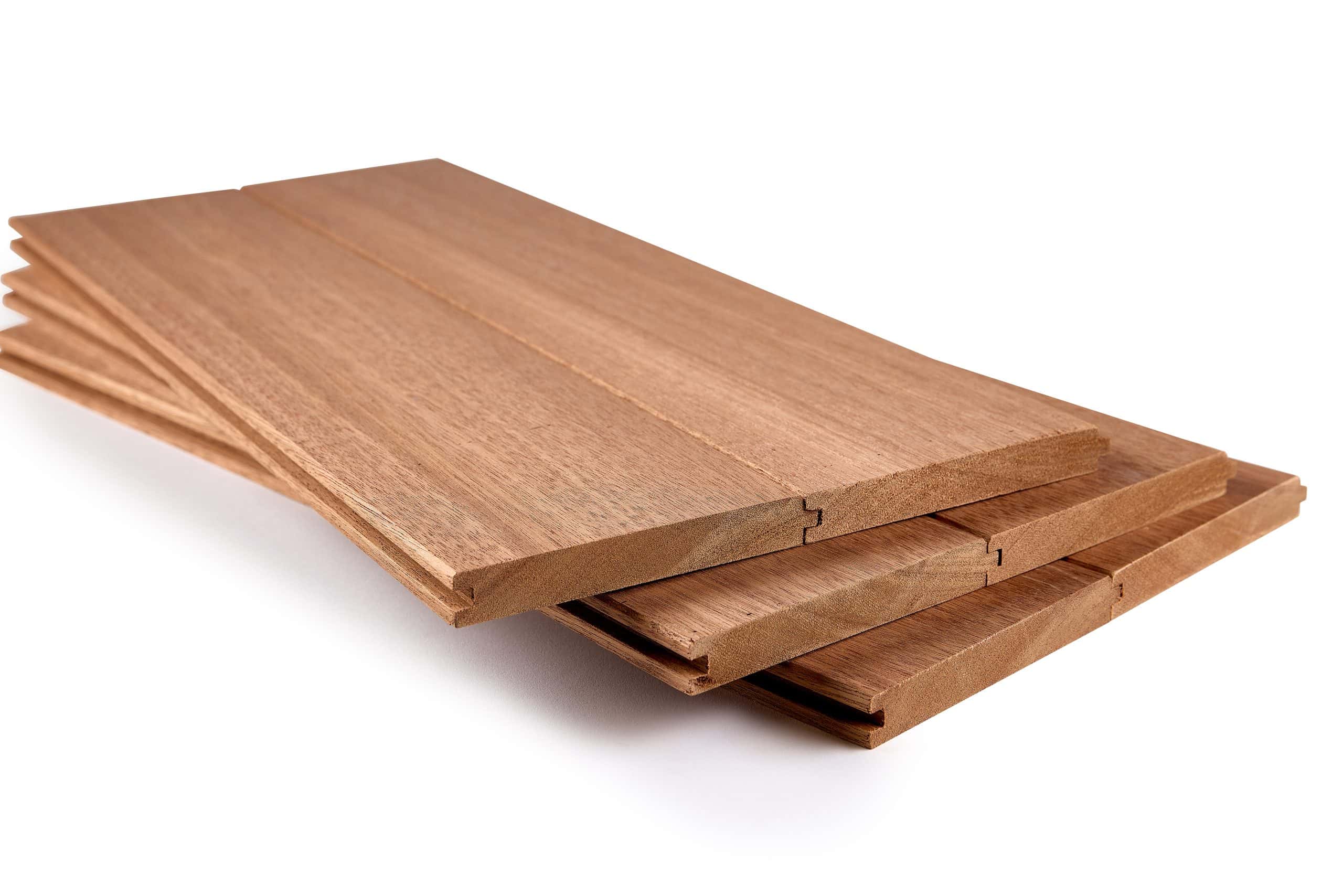

REVERSIBLE TONGUE AND GROOVE
MULTI-USE: ceiling, soffit, paneling, siding. 1x4 also used for porch flooring.
PROFILE: WR-166/WP-4. Reversible, tongue and groove with v-joint one face, square edge one face.
NOMINAL SIZE: 1x4, 1x6
NET SIZE: 3/4x3-1/2, 1-1/16x3-1/2
LENGTHS: 8'-20′, allowing maximum of 7% 6/7’ trimbacks as develops. 12′ average length. Specified lengths 6/7/8/10/12' available (1x4 only).
MOISTURE CONTENT: Kiln dried to 12%

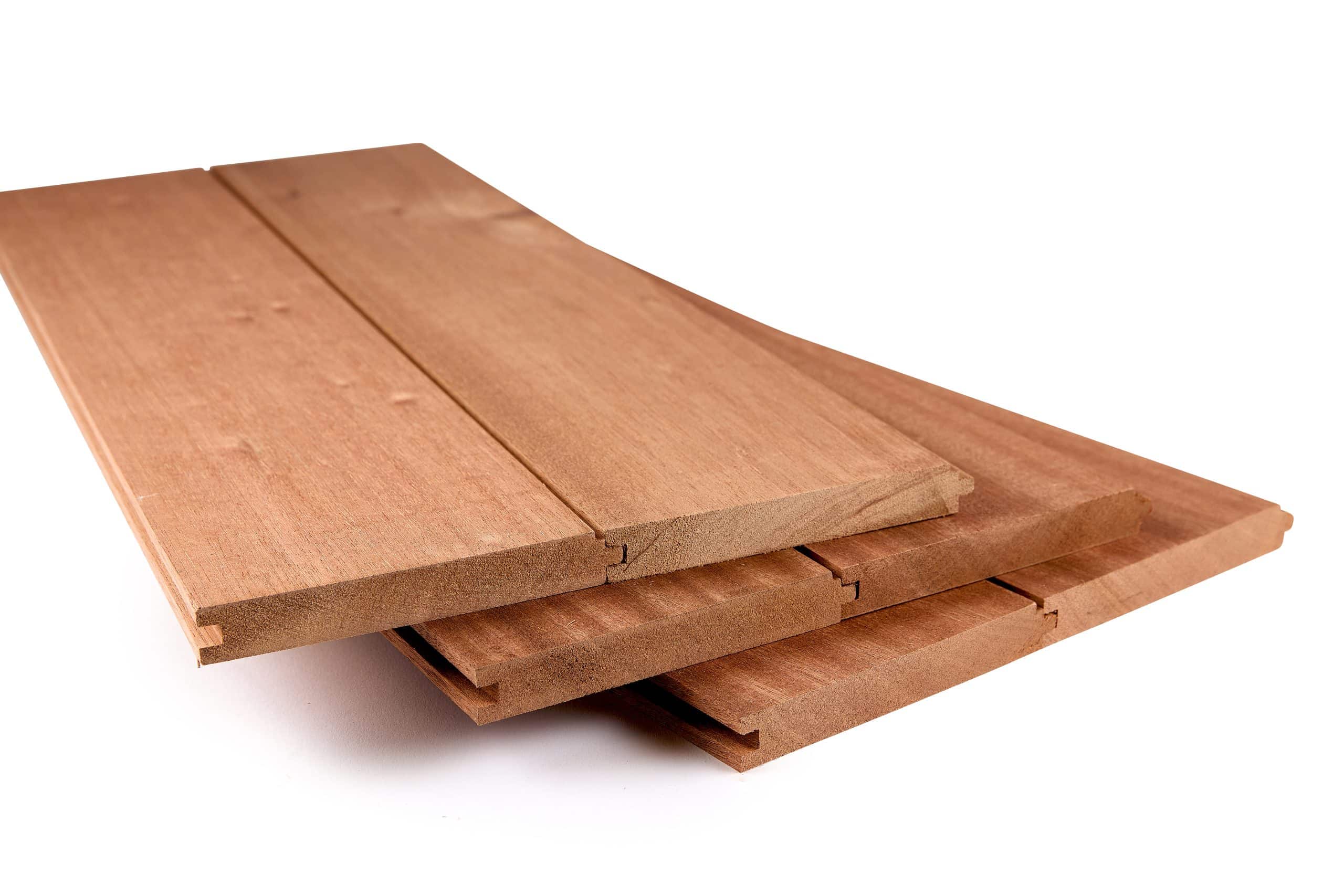

NICKEL GAP TONGUE AND GROOVE
PROFILE: square edge one face, nickel gap one face.
NOMINAL SIZE: 1x6
NET SIZE: 3/4x5-1/2
LENGTHS: 8-20′, allowing maximum of 7% 6/7' trimbacks, as develops. 12′ average length.
MOISTURE CONTENT: Kiln dried to 12%
